Zero-OS Storage System: Technical Architecture & Implementation

This document provides a comprehensive technical explanation of how the Zero-OS storage system works, detailing the architectural principles, implementation mechanisms, and technical innovations that enable its distributed storage capabilities.

Core Architectural Principles

The Zero-OS storage system is built on several fundamental architectural principles that differentiate it from conventional storage systems:

1. Dispersed Storage: Rather than using replication, the system mathematically encodes and distributes data across multiple nodes, with each node storing only small, incomplete fragments of data objects.

2. Zero Knowledge Design: Storage nodes have no knowledge of what they're storing, as each contains only mathematical representations of fragments insufficient to reconstruct the original data.

3. Self-healing Architecture: The system automatically detects and corrects data degradation (bitrot) and redistributes data in case of hardware failures.

4. Geographic Control: The architecture enables precise selection of storage providers based on specific requirements, including regulatory compliance needs like GDPR.

These principles create the foundation for a secure, efficient, and resilient distributed storage infrastructure that can scale from petabytes to zetabytes while maintaining data integrity and privacy.

System Architecture Overview

Storage Component Hierarchy

The Zero-OS storage system employs a layered architecture with three distinct component levels:

1. Frontend Interface Layer:

   • QSFS (Quantum Safe File System): Provides a standard filesystem interface, making the underlying distributed storage accessible to applications
   • Used by developers and end-users to interact with the storage system

2. Encoding & Distribution Layer:

   • ZSTOR: Handles data encoding, encryption, metadata management, and distribution of fragments
   • Responsible for implementing the zero-knowledge quantum safe encoding algorithm
   • Contains monitoring capabilities for system health checks

3. Physical Storage Layer:

   • ZDB (Zero-DB): The fundamental storage daemon that stores data fragments directly on HDD or SSD
   • Implements an append-only database architecture to store objects in immutable format
   • Optimized for high-performance writes to storage media

Scale-Out Architecture

The Zero-OS storage system implements a scale-out architecture where:

• Each storage use case operates with its own instance of QSFS and ZSTOR
• These instances connect to 20+ ZDBs, which can be geographically distributed
• The architecture can support unlimited numbers of QSFS and ZSTOR instances
• Data is always processed and consumed locally where it is produced

This approach ensures scalability, performance isolation, and data privacy, allowing the system to grow horizontally by adding more nodes rather than requiring more powerful centralized components.

Technical Implementation: Quantum Safe Storage (QSS) Algorithm

At the core of the Zero-OS storage system is the Quantum Safe Storage (QSS) Algorithm, which transforms how data is stored and distributed.

Mathematical Approach

Unlike conventional storage systems that use replication or sharding, the QSS algorithm implements a mathematical transformation approach:

1. Original data is fragmented into multiple parts (e.g., fragments a, b, c, etc.)
2. The system generates unique mathematical equations using these fragments
3. These equations are distributed across multiple physical storage devices
4. The original data fragments are not retained; only the equations are stored
5. To recover data, the system retrieves multiple equations and solves them

Example Implementation

For a simplified explanation with three fragments having values:

a=1
b=2
c=3

The algorithm generates multiple equations:

1: a+b+c=6
2: c-b-a=0
3: b-c+a=0
4: 2b+a-c=2
5: 5c-b-a=12
...

Mathematically, only three equations are required to fully describe the original fragments, but generating additional equations enhances reliability. To recover data, the system solves any three retrieved equations to reconstruct the original values.

In a typical production configuration (16/4):

• Each object is fragmented into 16 parts
• 20 equations are generated and distributed across 20 devices
• Only 16 equations are needed to reconstruct data
• The system can tolerate the loss of any 4 of the 20 equations

This mathematical approach achieves an overhead of only 20% compared to the 400% overhead typical in traditional replication systems.

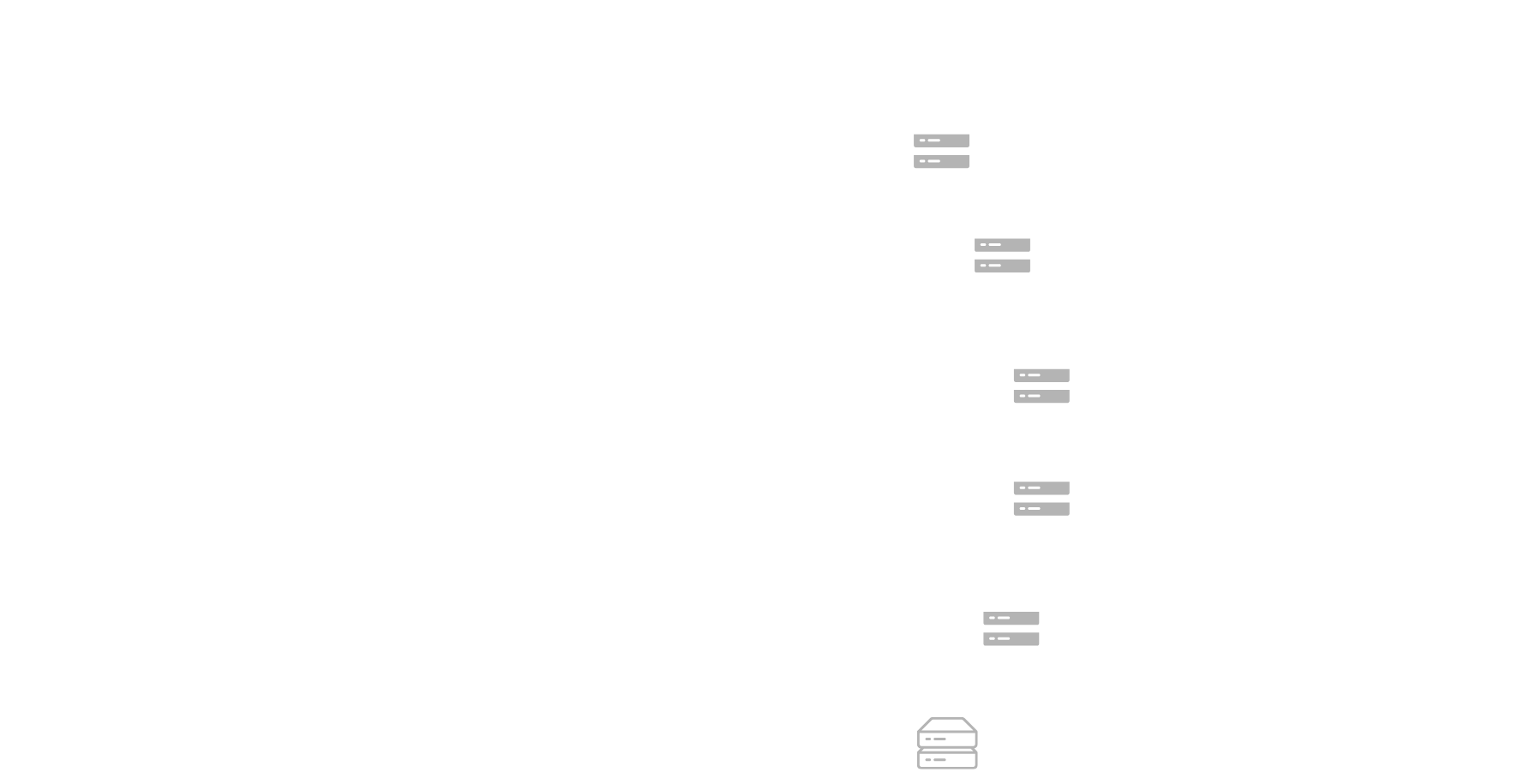

Zero Knowledge Implementation

The QSS algorithm implements zero knowledge proof principles:

1. Storage nodes can cryptographically prove they store valid data fragments without knowing the complete data set
2. Each node contains only partial mathematical descriptions of the original data
3. These fragments are mathematically insufficient to reconstruct the original data objects without accessing multiple other fragments
4. ZSTOR can validate the integrity of all storage devices without requiring data reconstruction

This architecture inherently implements data privacy, as no single storage component has sufficient information to determine the content of the stored data.

Quantum Safe File System (QSFS)

The Quantum Safe File System (QSFS) provides a filesystem abstraction layer that makes the underlying Zero-Stor technology accessible to applications.

Technical Implementation

QSFS implements a filesystem architecture that utilizes Zero-Stor as its backend storage mechanism:

1. Applications interact with QSFS as a standard mounted filesystem
2. QSFS translates filesystem operations into Zero-Stor operations
3. Zero-Stor handles the encoding, encryption, and distribution of data
4. Data retrieval reverses this process, reconstructing files from distributed fragments

The filesystem maintains metadata redundancy with configurable consistency levels, typically operating with a maximum synchronization lag of approximately 15 minutes.

Technical Specifications

• Petabyte-scale storage capacity
• Data transfer performance of up to 50 MB/sec, optimized for larger file operations
• Support for up to 2 million files per filesystem instance
• Universal mounting capability across operating systems and container platforms
• Workload compatibility with most data storage requirements (excluding high-performance database workloads)

Technical Components

The QSFS implementation consists of three primary components:

1. 0-db: The core storage engine implementing an append-only database that stores objects in immutable format. This design enables:

   • Built-in history preservation
   • Optimized disk performance
   • Minimal overhead
   • Simplified data structures
   • Efficient backup operations through linear copying of immutable files

2. 0-stor-v2: Handles data dispersion by implementing 'forward-looking error-correcting code' (FLECC) algorithms:

   • Processes files in any format
   • Applies AES encryption using user-defined keys
   • Performs FLECC encoding
   • Distributes fragments across multiple 0-DB instances
   • Maintains data accessibility even when some 0-DB instances are unavailable
   • Rebuilds missing fragments to restore full consistency

3. 0-db-fs: Implements the filesystem driver interface:

   • Uses 0-DB as its primary storage engine
   • Manages directory and metadata storage in a dedicated namespace
   • Stores file payloads in a separate namespace

ZSTOR (Zero-Stor)

ZSTOR is the central component responsible for encoding data, managing metadata, and coordinating storage operations in the Zero-OS storage system.

ZSTOR Components

1. ZSTOR Encoder: Performs data compression, encryption, and applies forward error correction (FEC) to split data into resilient fragments.

2. ZSTOR ZDB: A local staging area where incoming data is first aggregated for performance. At configurable intervals (based on time or volume), data is encoded and flushed to remote ZOS ZDB backends.

3. ZSTOR Monitor: Exposes monitoring metrics for systems like Prometheus and provides health/status information for the storage cluster.

4. ZSTOR Meta: Stores metadata (used, for example, by QSFS) within its own ZSTOR ZDB.

5. ZSTOR Cluster: (OEM only) Enables real-time synchronization between multiple ZSTOR instances in sync mode to maintain redundancy or geographic failover.

Operational Process

1. Data Ingestion: ZSTOR receives data from QSFS or other frontend interfaces
2. Data Processing:
   • Compresses data to reduce storage requirements
   • Encrypts data using AES encryption with user-defined keys
   • Applies forward error correction encoding to create redundant fragments
3. Fragment Distribution: Distributes encrypted fragments to multiple ZDB instances
4. Metadata Management: Maintains metadata about fragment locations and encoding parameters
5. Health Monitoring: Continuously monitors ZDB health and rebuilds fragments as needed

ZDB (Zero-DB)

ZDB is the fundamental storage backend that directly interfaces with physical storage media.

Technical Implementation

ZDB is a Redis-compatible storage daemon optimized for high-performance writes to SSD and HDD:

1. Append-Only Architecture: Implements an append-only database that stores objects in immutable format
2. Namespace Support: Organizes data into namespaces, which are uniquely reserved per user or system
3. Fragment Storage: Stores only data fragments without any context; these fragments are meaningless on their own
4. Direct Hardware Access: Efficiently utilizes underlying storage hardware for maximum performance

Content Delivery Implementation: FungiStor

FungiStor (planned for H2 2025) extends the Zero-OS storage system for efficient content delivery:

Technical Architecture

FungiStor implements a peer-to-peer content delivery architecture designed for efficient storage and distribution of digital objects:

1. Multi-Filesystem Support: Multiple independent QSFS instances map to a shared pool of ZDBs across backend ZOS nodes
2. Shared Storage Backend: All QSFS/ZSTOR pairs use a common distributed pool of ZDBs
3. Controlled Write Access: Write operations are strictly serialized via RAFT consensus
4. Dispersed Encoding Strategy: Data encoding is highly distributed across the ZDB pool
5. Read-Optimized Architecture: Designed for parallel content fetching from diverse nodes with low latency

Technical Specifications

• Distributed Global Architecture: Implements a globally distributed system with target latency of sub-50ms for data retrieval
• Geographic Optimization: Implements location-aware content delivery prioritizing local data access
• Protocol Interoperability: Implements compatibility with IPFS and other distributed storage protocols
• Resource Efficiency: Achieves 3-10x resource efficiency compared to conventional content delivery architectures
• Data Integrity Protection: Inherits the data integrity and corruption resistance mechanisms from QSS

Data Protection & Security Features

Data Degradation Protection

The Zero-OS storage system addresses data degradation (bitrot), which causes storage media to become gradually unreadable over time:

1. The system continuously verifies the integrity of stored fragments
2. When corruption is detected, the system automatically reconstructs the affected fragments
3. New fragments are generated and distributed to maintain the required redundancy level

Self-Healing Storage Architecture

In hardware failure scenarios (storage device or node failure):

1. The system detects the unavailability of fragments stored on the failed hardware
2. It automatically reconstructs these fragments using the available equations
3. New fragments are distributed to other available nodes
4. The system returns to the configured redundancy level without manual intervention

Post-Quantum Security

The storage architecture optionally implements post-quantum cryptographic algorithms, making it resistant to attacks using quantum computing:

1. Data encoding uses mathematical approaches that are resistant to quantum attacks
2. Encryption can utilize post-quantum algorithms
3. The dispersed nature of the storage provides additional security against quantum attacks

Technical Comparison with Conventional Approaches

	Quantum Safe Storage Architecture	Conventional Overlay Storage Systems
Scalability	Horizontally scalable architecture with no theoretical size limitations	Variable scalability; many systems face centralization bottlenecks
Compatibility	High compatibility through filesystem abstraction layer; supports mounting other systems	Varies by implementation; often limited to specific protocols
Performance	Performance profile (~100 MB/sec per content creator); optimized for reliability	Variable performance characteristics depending on implementation
Redundancy Efficiency	20% overhead for 4-node failure tolerance through mathematical distribution	Typically 400-500% overhead (4-5 complete copies) for equivalent redundancy
Compute Integration	Integrated with Infrastructure-as-Code tooling; requires technical expertise	Diverse integration approaches with varying complexity
Geographic Control	User-controlled data placement with geographic autonomy	Typically uses centralized routing algorithms with limited geographic control
Security Architecture	Implements mathematical encoding and encryption for enhanced security	Conventional encryption approaches with varying security models
Post-Quantum Readiness	Optionally implements post-quantum cryptographic algorithms	Generally not designed with quantum resistance

System Implementation Status

The Zero-OS storage system components are at various stages of implementation:

• ZDB (Zero-DB): Production implementation
• ZSTOR (Zero-Stor): Production implementation
• QSFS (Quantum Safe File System): Production implementation
• FungiStor: Planned for H2 2025

Current Limitations

While the core storage architecture is technically robust, there are some limitations in the current implementation:

1. Technical Expertise Requirement: The system currently requires scripting knowledge and is primarily suitable for technical system administrators
2. Limited User Interface: The system lacks user-friendly interfaces for non-technical users
3. Complex Configuration: Setting up and optimizing the system requires understanding the lower-level components

The upcoming FungiStor implementation aims to address these limitations by providing a more user-friendly abstraction layer that simplifies the entire experience, with automated coordination, smarter defaults, and integrated content addressing.

Conclusion

The Zero-OS storage system represents a fundamentally different approach to distributed storage, implementing mathematical principles to achieve higher efficiency, better security, and enhanced reliability compared to conventional replicated storage systems.

By distributing data using sophisticated encoding algorithms rather than simple replication, the system achieves significantly lower storage overhead while maintaining or improving data integrity and availability. The zero-knowledge architecture provides inherent privacy protection, as no single component has access to complete data.

The layered architecture of QSFS, ZSTOR, and ZDB creates a flexible system that can be adapted to various use cases, from simple file storage to content delivery networks and specialized applications like NFT storage. The upcoming FungiStor implementation will further enhance the system's capabilities, making it more accessible to non-technical users while maintaining its core technical advantages.
