Zero-OS Network System: Technical Architecture & Implementation

This document provides a comprehensive technical explanation of how the Zero-OS network system works, detailing the architectural principles, implementation mechanisms, and technical innovations that enable its distributed networking capabilities.

Core Architectural Principles

The Zero-OS network system is built on several fundamental architectural principles that differentiate it from conventional networking approaches:

  1. Secure Mesh Overlay: The system implements a fully distributed peer-to-peer network topology where each participant can securely communicate with all others, creating a resilient mesh architecture.

  2. End-to-End Encryption: All communication between network participants is encrypted from source to destination, ensuring data privacy and integrity throughout transmission.

  3. Network Isolation: By default, workloads operate within isolated private networks, with no automatic public internet connectivity, enhancing security through isolation.

  4. Controlled Public Exposure: Access to public networks is provided through explicit configuration of dedicated Web Gateway components that maintain the separation between internet-facing services and backend workloads.

  5. Optimized Path Routing: The system implements dynamic traffic routing algorithms that identify the most efficient path between network participants based on multiple parameters including latency, bandwidth, and reliability.

These principles create the foundation for a secure, resilient, and efficient networking infrastructure that addresses many limitations of traditional centralized networking approaches.

System Architecture Overview

Network Component Hierarchy

The Zero-OS network system employs a layered architecture with several distinct components:

  1. ZNet: The foundational networking layer that implements a virtual private data center model, enabling full mesh connectivity between containerized workloads.

  2. Mycelium Network: A distributed overlay network that operates on top of existing Internet infrastructure, providing secure end-to-end encrypted communication.

  3. Web Gateway: A specialized component that connects private networks to the public Internet while maintaining isolation between internet-facing services and secure backend workloads.

These components work together to create a comprehensive networking solution that provides both internal and external connectivity while maintaining security through architectural design.

Connectivity Architecture

The Zero-OS network system implements multiple connectivity mechanisms to accommodate various usage scenarios:

  1. Private Network Connectivity: Within the distributed grid infrastructure, workloads connect through the ZNet layer, creating a fully isolated private network environment.

  2. Peer-to-Peer Connectivity: Applications can establish direct connections with other Mycelium Network participants, bypassing traditional centralized infrastructure.

  3. Public Internet Connectivity: Through the Web Gateway component, applications can be securely exposed to the public internet, enabling external access to services.

This multi-layered approach provides flexibility for diverse deployment scenarios while maintaining security through architectural separation of concerns.

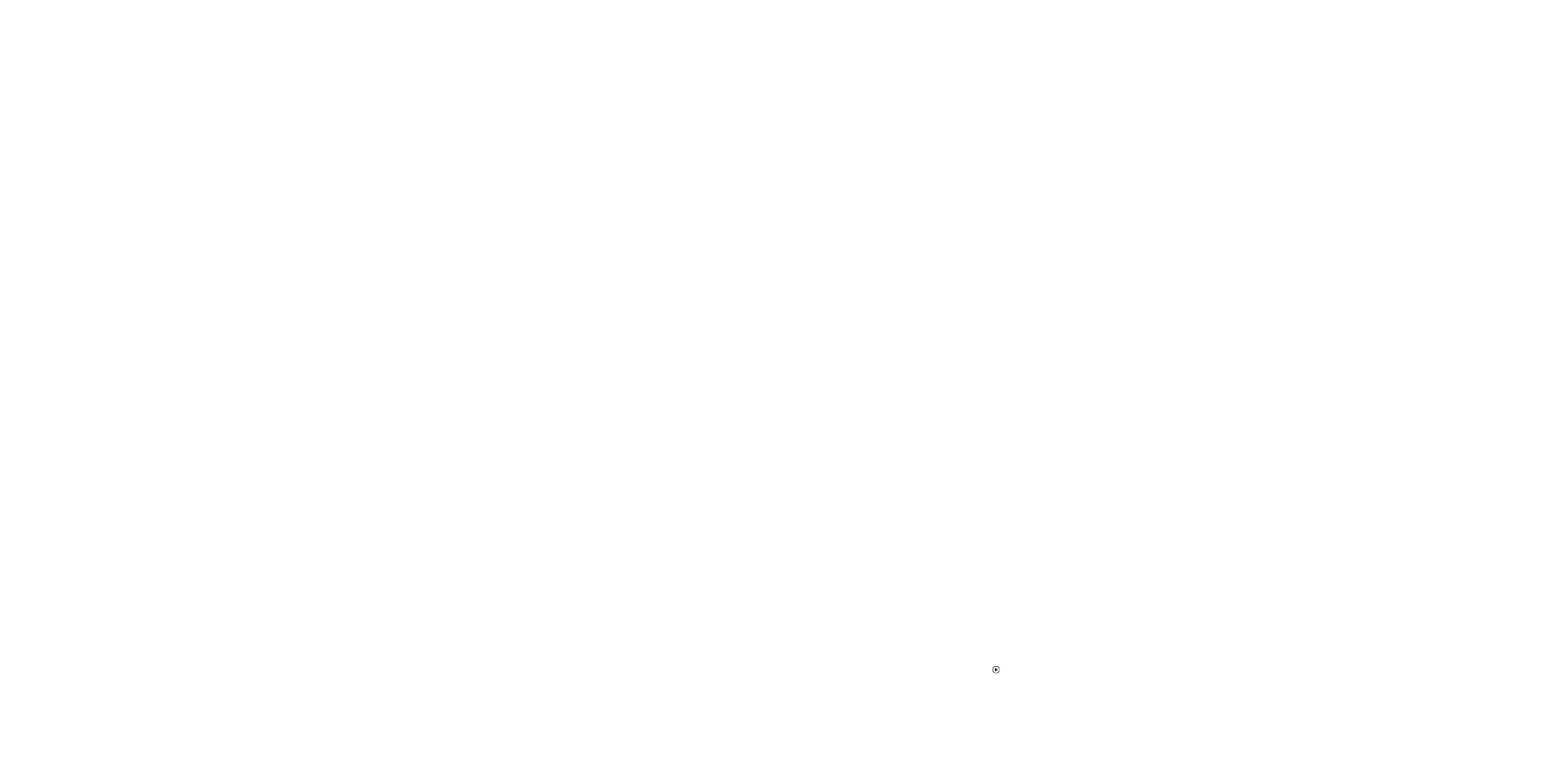

Mycelium Network: Distributed Overlay Implementation

Mycelium is a core component of the Zero-OS network system that implements a distributed overlay network architecture.

Technical Implementation

The Mycelium network operates as a layer on top of existing internet infrastructure, creating a virtual mesh topology where:

  1. Each network participant installs a Network Agent on their device
  2. The agent establishes secure connections with other participants in the network
  3. Traffic is routed through the optimal path between participants
  4. End-to-end encryption secures all communications

This architecture enhances traditional internet connectivity by enabling direct peer-to-peer communication and implementing advanced security features through distributed design.

Technical Capabilities

Mycelium implements several advanced networking capabilities:

  1. Resilient Connectivity: The system dynamically routes traffic across multiple connection types (peer nodes, satellite links, cellular networks, fiber connections) to maintain persistent sessions even when individual links experience disruption.

  2. Cryptographic Security: All communications are protected with end-to-end encryption protocols that prevent man-in-the-middle attacks and ensure data privacy.

  3. Authentication Verification: The system incorporates proof of authenticity (POA) mechanisms to verify communication endpoints, ensuring that participants are connecting to legitimate services.

  4. Optimized Routing Algorithms: Path optimization techniques identify the shortest or most efficient route between network participants, reducing latency and improving performance.

  5. Distributed Server Architecture: Any network participant can function as a server node, enabling true peer-to-peer systems without requiring centralized infrastructure.

  6. Protocol Compatibility: The system maintains seamless integration with existing internet protocols and applications, ensuring broad compatibility.

Performance Characteristics

The Mycelium network on desktops and mobile devices achieves throughput of up to 1 Gbps per Network Agent, enabling efficient data transfer suitable for most modern application requirements. Within a deployed infrastructure, wire-speed performance can be achieved, limited only by the underlying hardware—for example, up to 100 Gbps.

Shortest Path Routing: Technical Implementation

At the core of the Mycelium network is its sophisticated routing algorithm that optimizes network traffic paths between participants.

End-to-End Encryption Architecture

The Zero-OS network system implements end-to-end encryption (E2EE) where:

  1. Data is encrypted on the originating device
  2. Encrypted data traverses the network through optimal paths
  3. Data is only decrypted at the destination device
  4. No intermediary nodes, including service providers, can access or modify the data

This security model ensures that communications remain private and secure throughout transmission, even when traversing multiple intermediate nodes.

Dynamic Path Calculation

Each Mycelium Network Agent executes custom routing logic to optimize connectivity based on multiple parameters:

  1. Latency Measurement: The system continually measures the round-trip time between nodes to identify low-latency paths.

  2. Bandwidth Assessment: Available bandwidth on potential paths is evaluated to ensure sufficient capacity for data transmission.

  3. Reliability Metrics: The system tracks connection stability and packet loss rates to prioritize reliable transmission paths.

  4. Geographic Positioning: Node locations are considered to minimize physical distance traveled by data, reducing latency and improving efficiency.

Based on these parameters, the routing algorithm dynamically calculates the optimal path for each transmission, adapting to changing network conditions in real-time.

Multi-Hop Transmission Protocol

When direct connections between source and destination are not available or optimal, the system implements multi-hop transmission:

  1. Data is encrypted end-to-end, ensuring security regardless of transmission path
  2. The routing algorithm identifies intermediate nodes that provide the most efficient overall path
  3. Data traverses these intermediate nodes without being decrypted or exposed
  4. Resource usage is tracked with compensation mechanisms to ensure fair allocation

This approach enables resilient connectivity even in challenging network environments where direct connections are not possible.

Web Gateway: Secure Public Exposure

The Web Gateway component provides a secure mechanism for exposing private network services to the public Internet.

Technical Implementation

The Web Gateway creates a clear architectural separation between compute workload execution and service exposure points:

  1. Gateway Nodes: Infrastructure providers configure nodes with gateway capability, allowing them to accept gateway workloads and implement traffic forwarding.

  2. Namespace Reservation: Each gateway service requires a namespace reservation (prefix) on the distributed ledger, establishing a unique identifier for the service.

  3. Proxy Configuration: Upon workload assignment, the node configures a proxy service for the reserved namespace, routing traffic to the appropriate internal endpoints.

  4. TLS Implementation: Security parameters control TLS configuration and other connection properties to ensure secure communication.

This architecture maintains isolation between Internet-facing services and the secure workloads running in Zero VMs, reducing the attack surface for backend systems.

Redundancy Architecture

The Web Gateway implements several redundancy mechanisms to ensure high availability:

  1. Multi-Gateway Redundancy: Applications can utilize multiple web gateways simultaneously, with DNS round-robin for load distribution and connection redundancy.

  2. Clustering Architecture: Gateway services can be clustered to enable continuous service availability despite individual gateway or node failures.

  3. Connection Persistence: When containers are relocated or recreated, existing end-user connections remain valid as they terminate at the Web Gateway layer, with relocated containers establishing new connections to resume traffic processing.

This approach enables robust service availability while simplifying maintenance operations and providing resilience against failures.

Horizontal Scalability

The Web Gateway architecture implements a horizontally scalable system with no inherent bottlenecks:

  1. Independent Scaling: Network capacity (supply) and utilization (demand) scale independently, allowing the system to adapt to changing requirements.

  2. Unlimited Provider Support: The system supports unlimited infrastructure providers offering web gateway services alongside compute and storage resources.

  3. Distributed Load: Traffic is distributed across multiple gateways, preventing concentration of load at any single point in the network.

This scalable approach enables the system to grow organically as demand increases, with no architectural limitations on size or capacity.

Distributed Access Control: Beyond Perimeter Security

The Zero-OS network system implements an advanced security model that moves beyond traditional perimeter-based defenses.

Limitations of Perimeter-Based Security

Traditional firewall implementations face several inherent limitations:

  1. Perimeter-Centric Design: Conventional security models focus on boundary protection, providing inadequate defense against internal threats.

  2. Static Rule Implementation: Predetermined rule sets lack dynamic adaptation capabilities, making them vulnerable to advanced attack methodologies.

  3. Centralized Vulnerability: Consolidated security control points represent a critical architectural vulnerability, where compromise potentially exposes the entire protected network.

Authentication-Based Security Implementation

The Zero-OS network system addresses these limitations through strong authentication mechanisms and distributed communication:

  1. Cryptographic Authentication: The system implements identity verification through multiple cryptographic mechanisms, including multi-factor authentication and public key infrastructure.

  2. Endpoint-Level Security: Security is implemented at the endpoint level rather than at perimeter control points, distributing the security architecture.

  3. Peer-to-Peer Communication: Authenticated participants establish direct, secure communication channels via the Mycelium overlay network, reducing reliance on centralized security controls.

This distributed approach creates a more resilient security architecture that can withstand compromise of individual components without exposing the entire system.

Whitelist-Based Access Control

For enhanced security, applications can implement whitelist-based access control with group permission structures:

  1. Entity Whitelisting: Access is granted only to specifically authorized entities based on cryptographic authentication credentials.

  2. Group Permission Architecture: Entities are organized into permission groups with defined access parameters, allowing applications to define access policies based on group membership, source addressing, and additional authentication factors.

This granular control enables precise access management regardless of network location, enhancing security while maintaining operational flexibility.

Technical Comparison with Conventional Approaches

Zero-OS Network ArchitectureConventional Network Approaches
Security ModelDistributed security with end-to-end encryption and endpoint authenticationPerimeter-based security with centralized firewalls and access controls
Connectivity PatternPeer-to-peer mesh topology with direct participant connectionsHub-and-spoke topology routing through centralized infrastructure
Path OptimizationDynamic path calculation based on multiple parametersFixed routing paths determined by infrastructure providers
ResilienceMulti-path connectivity with automatic failoverOften single-path with manual failover mechanisms
Public ExposureArchitectural separation between backend services and public-facing endpointsOften direct exposure of services to public networks
ScalabilityHorizontal scalability with no architectural bottlenecksVertical scaling often required at critical infrastructure points
AuthenticationCryptographic identity verification with multi-factor supportOften perimeter-based with limited endpoint verification
Geographic OptimizationLocation-aware routing with traffic localizationLimited consideration of geographic factors in routing decisions
Network ModelSoftware-defined overlay network with infrastructure independenceHardware-dependent infrastructure requiring physical deployment

System Implementation Status

The Zero-OS network system components are at various stages of implementation:

  • ZNet: Production implementation
  • Web Gateway: Production implementation
  • Mycelium Network: Currently in beta testing phase and available from version 3.13 of the grid implementation
  • Distributed Access Control: Available in the enterprise edition implementation

Current Limitations and Future Development

While the Zero-OS network system provides advanced networking capabilities, there are some current limitations:

  1. Beta Status: The Mycelium component is still in beta testing, with ongoing refinement based on user feedback.

  2. Technical Expertise: Configuring and optimizing the system currently requires technical expertise, limiting accessibility for non-specialist users.

  3. Documentation Maturity: Comprehensive documentation and configuration guides are still being developed to support broader adoption.

Future development plans include:

  1. User Interface Enhancements: Simplified configuration tools and interfaces to improve accessibility for non-technical users.

  2. Expanded Protocol Support: Integration with additional communication protocols and standards to enhance interoperability.

  3. Performance Optimization: Continued refinement of routing algorithms and network performance to reduce latency and increase throughput.

  4. Enterprise Integration: Enhanced features for enterprise deployment scenarios, including advanced access control and monitoring capabilities.

Conclusion

The Zero-OS network system represents a fundamental shift in network architecture, moving from centralized, perimeter-secured infrastructure to a distributed, cryptographically secured mesh topology. This approach addresses many limitations of traditional networking while providing enhanced security, performance, and resilience.

By implementing end-to-end encryption, optimized path routing, and distributed access control, the system creates a secure networking environment that can adapt to changing conditions and scale horizontally without architectural limitations. The clear separation between private networks and public internet exposure maintains security while enabling flexible deployment options.

As the system continues to mature, particularly with the ongoing development of the Mycelium component, it offers increasingly robust capabilities for building secure, efficient, and resilient network infrastructure that can support diverse application requirements across global deployments.
